FS AUDIO INDIA PVT. LTD

High output SPL and sensitivity
Powerful 1000W RMS class D amplifier with switchable DSP presets, easy operation

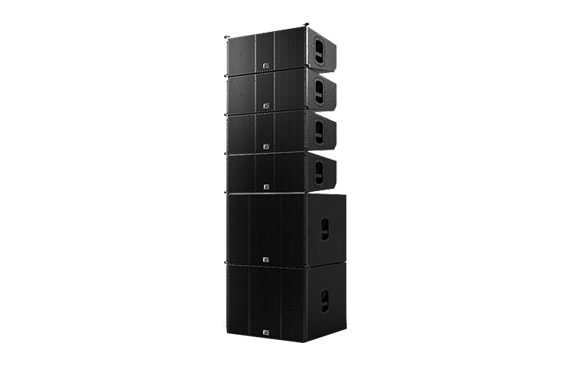

Multiple usage, stackable/ flyable; Single speaker box can be used as a full range speaker
Premium plywood cabinet with textured base painting,ideal for touring usage
High performance Neodymium loudspeakers deliver clean, punchy and undistroted sound reproduction.

Specification
Components	2x12"woofer+2×1.75"driver
Frequency Response(Hz)	50-20K
Impedance(Ohms)	4
RMS Power(W)	800
Program Power(W)	1600
Dispersion(@6dB)	H110º x V10º
Sensitivity (dB)(1w/1m)	98
Max SPL(dB)	127
Connection	COMBO

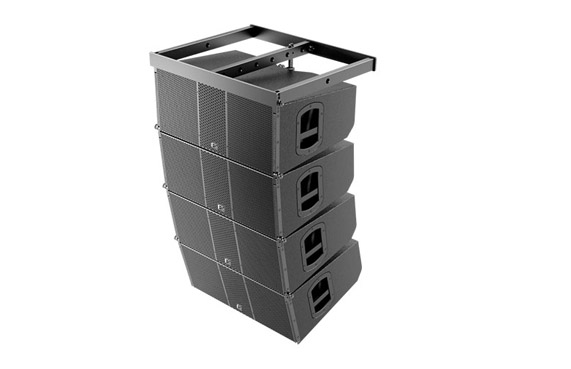

Flying Points
Product Weight(kg)	38
Gross Weight(kg)	41
Product Size(cm)	36×42×88
Shipping Carton Size(cm)	47.5×53.5×96
Amplifier Module
Output Power (EIA test standard,100HZ 1%THD)	Continuous power (20Hz – 20KHz): Both channels driven: HF: 2x100W/8 Ohms LF: 1x800W/8 Ohms
S/N	85 dB
Damping Factor	>500@100Hz
Protection	Over voltage protection up to 264V AC, overload output protection, clip, limiter
Drawing

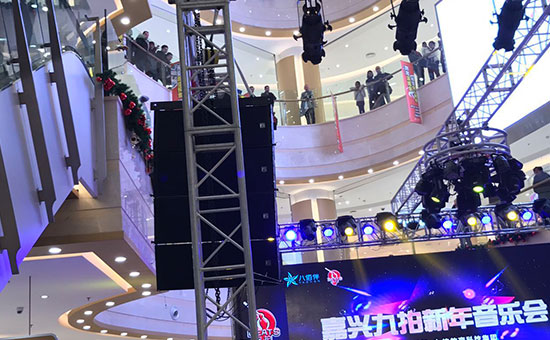

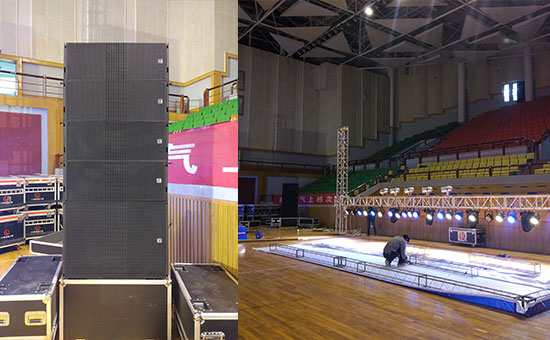

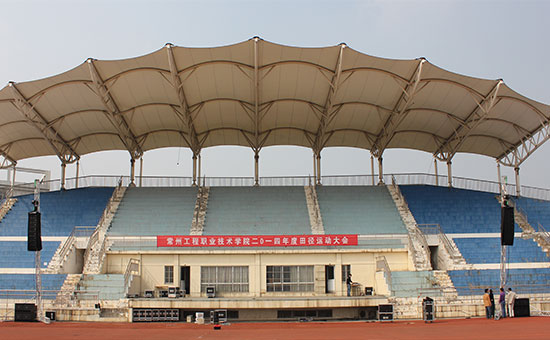

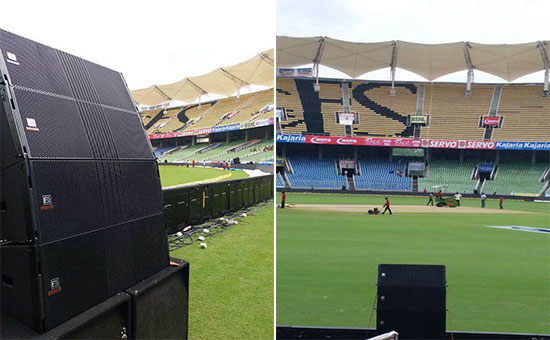

500-10000 persons,excellent for live, rental and portable sound reinforcement applications including Worship Houses,Touring, Theatres, Indoor Stadiums, Theme Parks, Multifunctional Auditoriums, Schools etc.
